6MM UVA 365NM AND WHITE BABBCOVISION WITH CERTIF

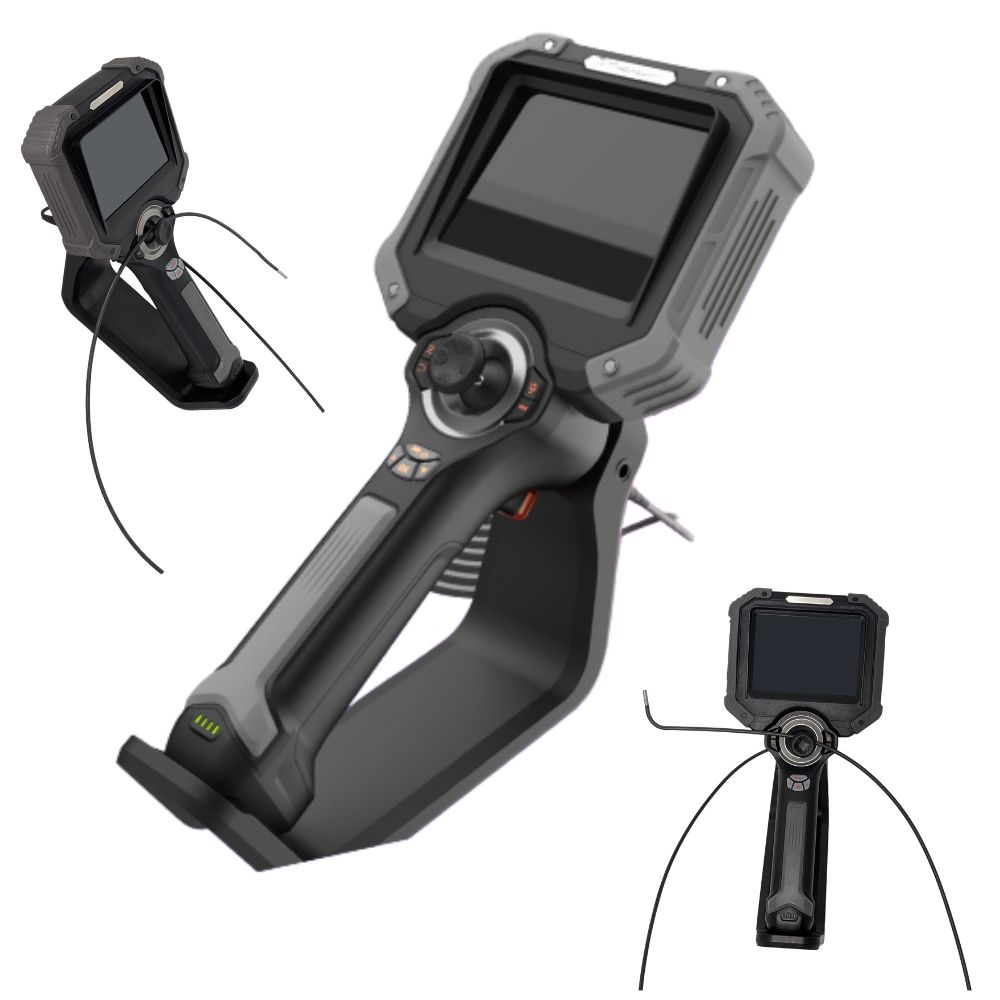

Industrial Video Endoscope with 6 mm Probe, designed for visual inspection with specific dual illumination.

Optical System and Illumination

• Dual Illumination: The device combines ultraviolet radiation (UV-A 365 nm, ISO 3059 certified) via silica fibre and white light via optical fibre (4600K) with a Colour Rendering Index (CRI) close to 85/100.
• Control: The lighting modes are non-simultaneous and dimmable.
• High-Definition Sensor: Utilises a 1/9" CMOS sensor offering a resolution of 1280 x 720 px for photos (.jpg) and videos (.mp4).
• Field of View: The sapphire glass optics offer a 120° viewing angle with a focal range (depth of field) from 8 to 150 mm.
• 4500 lux at approximately 3.5 cm
• 5000μw/cm² at 1.5 cm
• UV-A spectrum: 366nm, spectral width

Probe Characteristics

• Articulation: The camera head is fully articulated in all directions (omnidirectional) and controlled via a steerable joystick.
• Insertion Tube Design: The flexible tube is shielded by tungsten braiding. Its standard length is 150 cm (extendable up to 500 cm) and it is non-detachable.
• Ingress Protection: The camera head boasts an IP67 protection rating.

Control Unit and Ergonomics

• Display: The interface features a 5-inch touchscreen with a resolution of 1024 x 768 px and a maximum luminance of 650 cd/m².
• Storage and Connectivity: The device includes a 32GB card (expandable to 64GB). It is equipped with HDMI and USB Type-C ports, as well as a headphone jack.
• Power Supply: Two 3350 mAh batteries, rechargeable without removal.
• Image Processing: Functions include numerous settings such as brightness, white balance (auto/manual), as well as image rotation, mirror effect, and negative image.

Environment and Transport

• Operating Temperature Range: The probe withstands temperatures from -20°C to 60°C, whilst the main unit operates between -10°C and 40°C.
• Weight: The unit alone weighs 0.96 kg; the complete set with its carrying case weighs 6 kg.
