EDGE 4W IP65 FLOOD LAMP LED UV-A FOR WASH STATION

The EDG-4W is a UV-A LED ceiling lamp designed specifically for wash stations. It offers an extremely wide coverage area with moderate intensity, ideal for rinsing off excess penetrant.

It delivers a very wide beam without high intensity to facilitate the precise removal of penetrant without obscuring the indications. Equipped with 4 UV-A LEDs (365 nm) providing a uniform and constant beam.  Using an heat sink design, the EDG-4W cools mechanically without the need for a fan (fanless). Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Designed for installation at height or on inspection lines thanks to its flexible arm that allows for specific angles. Multiple units can be connected together (in series) to cover extremely large inspection areas.

Specifications:

• Dimensions (LxWxH): 27.9 x 35.6 x 22.9 cm.
• Total weight of the lamp: 6.35 kg.

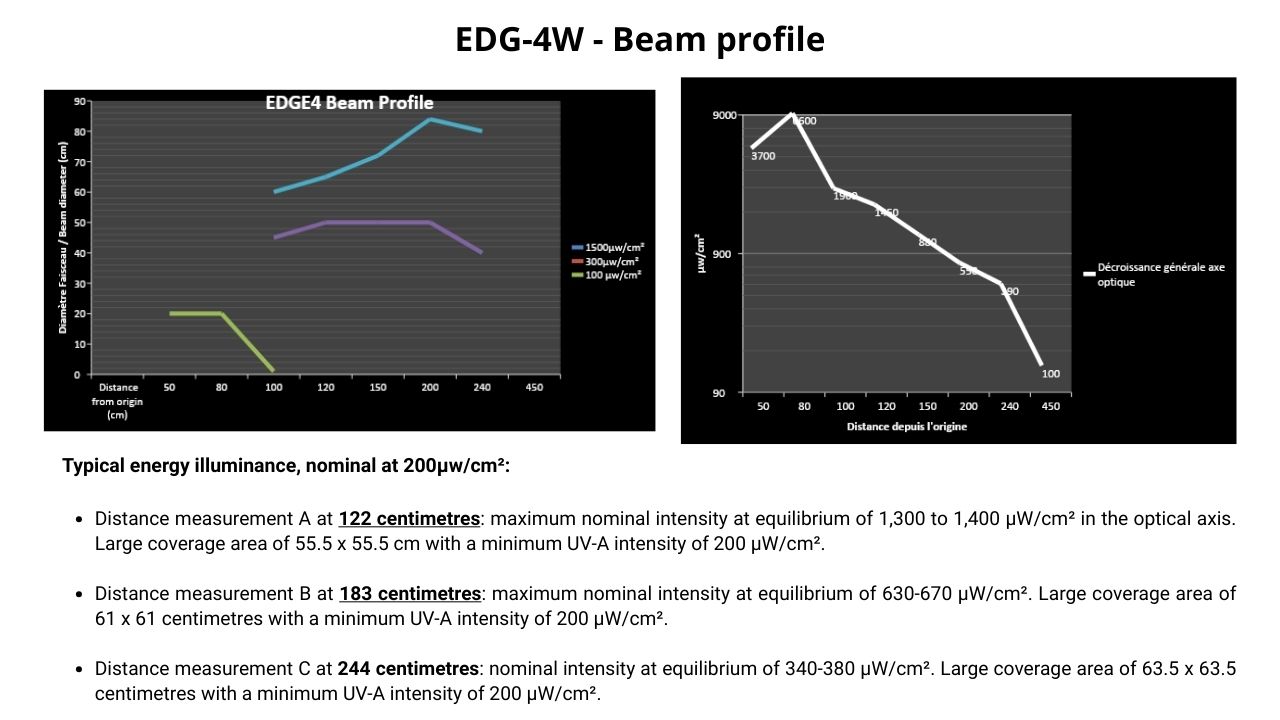

• UV-A LED intensity (at 122 cm): 1,400 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 56 x 56 cm.
• Visible light: <11 lux.
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230-240V
• Mains power supply (mains power cord supplied with the device)

Supplied with the ceiling lamp, mains plug, power cord and certificates of conformity.
