EDGE LED UV-A FLOOD LAMP ISO3059

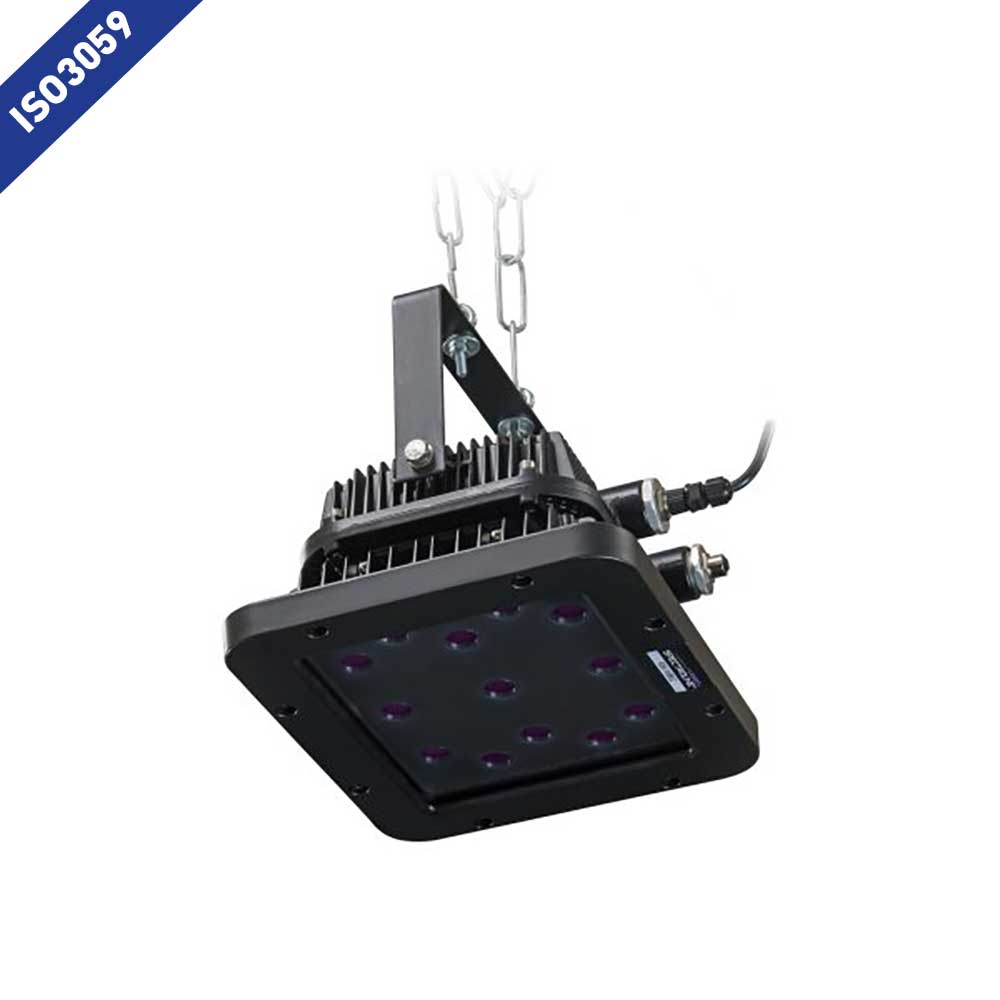

The EDG-13T is a wide-beam UV-A LED ceiling lamp specifically designed for stationary penetrant and magnetic particle inspections. This model is ideal for inspection booths where controlled intensity and full compliance are required.

It is ideal for use in penetrant or magnetic particle inspection booths, allowing fluorescent indications to be detected on large parts. Equipped with 13 UV-A LEDs (365 nm), it provides a uniform wide beam. Using an heat sink design, the EDG-13T cools mechanically without the need for a fan (fanless). Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Designed for installation at height or on inspection lines thanks to its flexible arm that allows for specific angles. Multiple units can be connected together (in series) to cover extremely large inspection areas.

Specifications:

• Dimensions (LxWxH): 27.9 x 35.6 x 22.9 cm.
• Total weight of the lamp: 6.35 kg
• UV-A LED intensity (at 38 cm): 6,500 µW/cm².

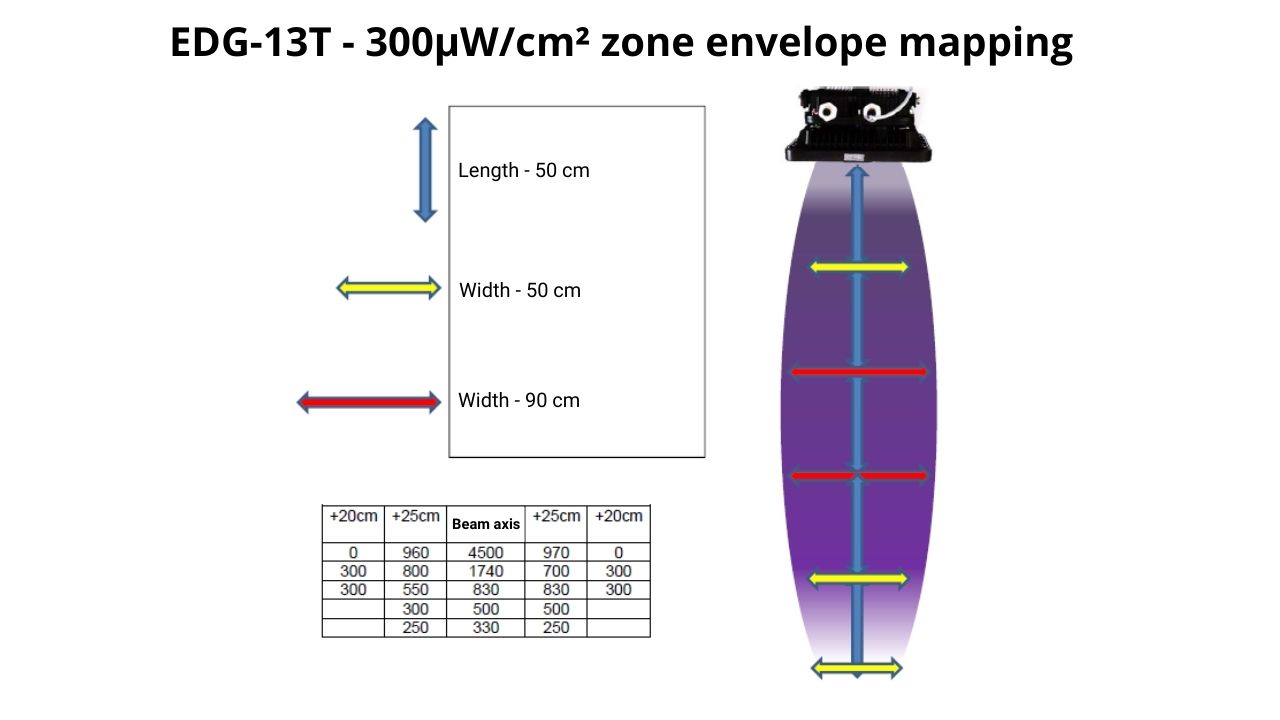

• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 40.6 x 43.2 cm.
• Visible light: <11 lux.
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230-240V
• Mains power supply (mains power cord supplied with the device)

Supplied with the ceiling light, mains plug, power cord and certificates of conformity.
