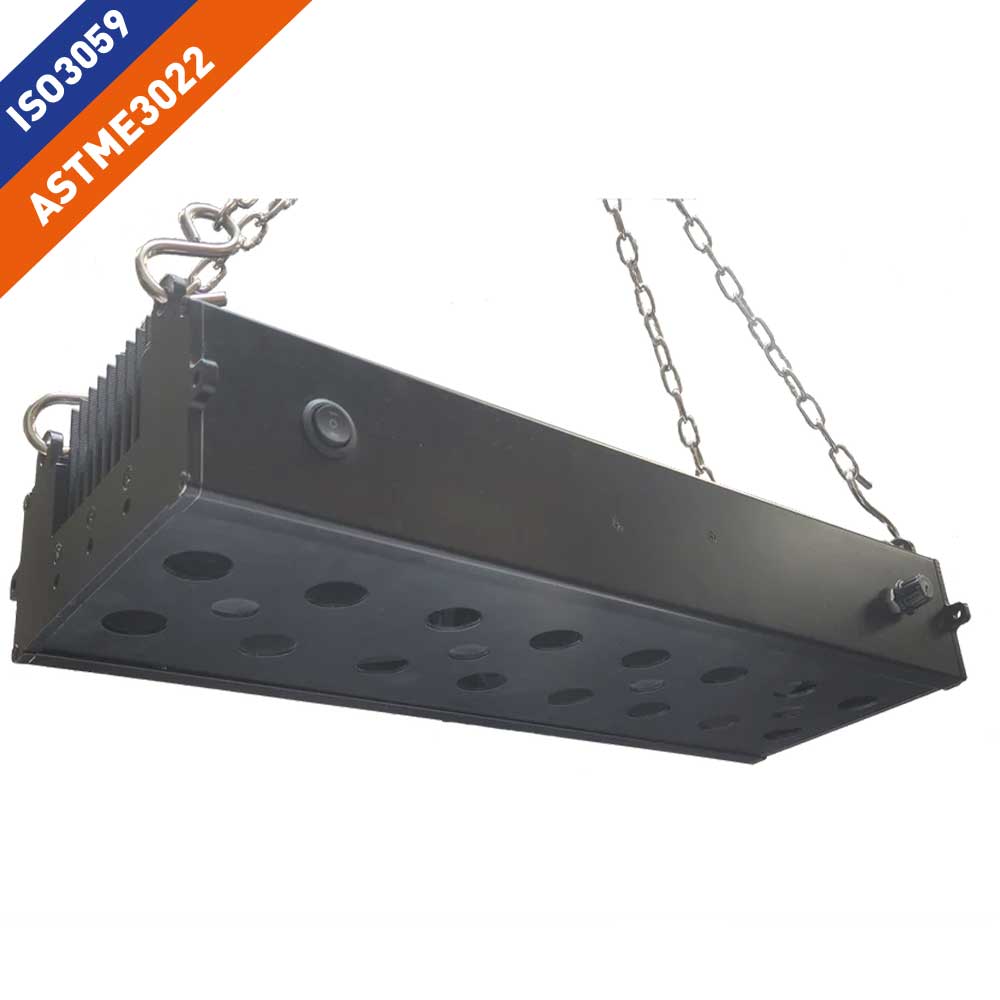

PM-16B/F POWERMAX 365 DUAL UV-A AND VISIBLE LIGHT
PowerMAX™ 365 Series flood lamps feature a panel of powerful UV-A (365nm) and Visible Light LED’s specifically engineered for Nondestructive testing applications. These versatile, stationary light sources can be installed overhead, in line or ganged together with RP-CGPM-01 to provide an even wider range of coverage area. Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.
16 UV-A (365nm) LED’s
4 White LED’S
UV-A Coverage Area of 23.6 x 10.63 In (60 x 27 cm ) at 15 inches
Nominal Steady-State UV-A Intensity at 6,500 uW/cm2
UV-A Coverage Area: 16 x 6 In (40.6 x 15.2 cm)
Visible Light Measurement: <1 foot-candle (<10 lux)
| Technical Data Sheet |
|---|
| Weight | 8.60 |
|---|---|
| Approvals |
|
| Brand |  |
| Ex-works shipping lead-time (days) | 7 |
| ERP Code | 900109-331 |
