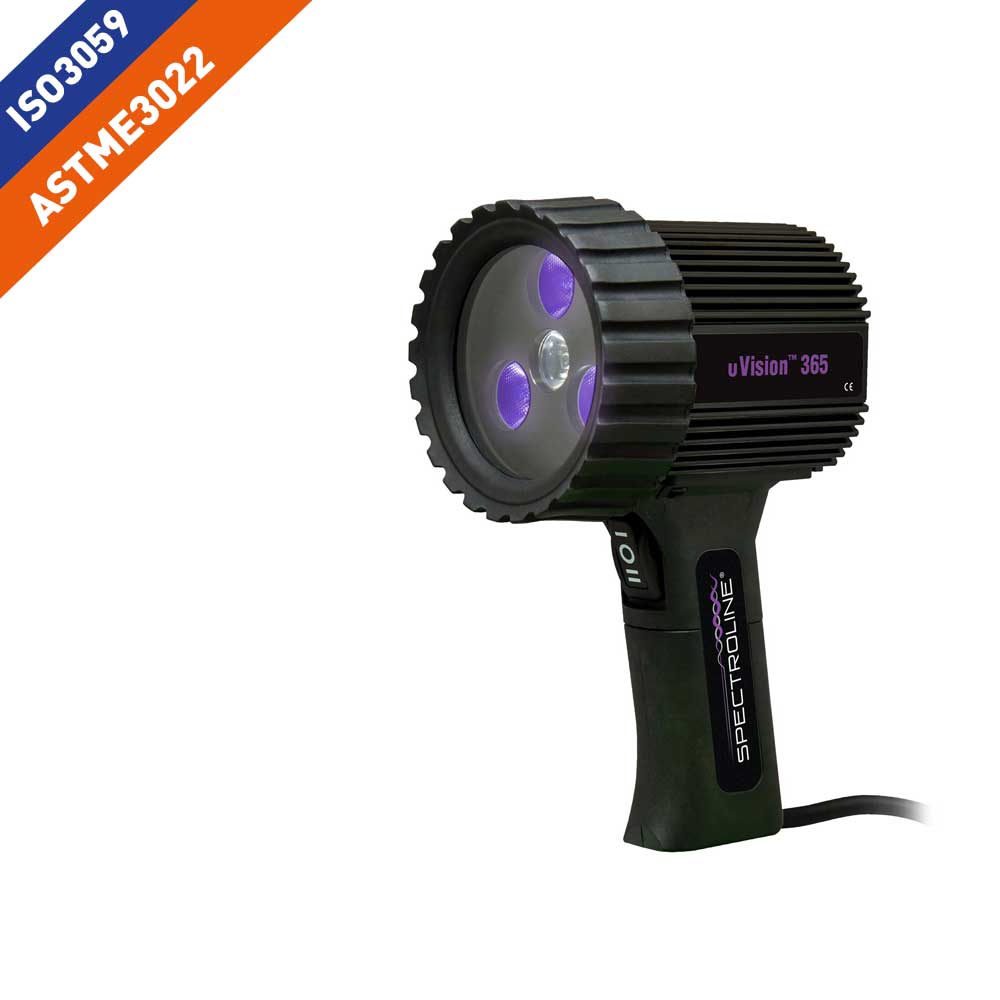

UVISION LAMP 365, STANDARD, 2,4M-CORD ASTME3022

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the DELUXE HC (High Compliant) Series, the UV-365HC/F is a high-performance wired solution designed to provide an intense UV-A beam for striking fluorescent response, enabling very high-quality evaluations.

In addition to three powerful UV-A LEDs (365 nm), an adjustable white LED is integrated into the lamp for illuminating work areas and scanning surface defects. Using a heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). The front panel is equipped with black filters/Wood filters to reduce visible wavelengths and maximise contrast. Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Specifications:

• Dimensions (W*H): 9.5 cm head diameter, 19.10 cm height.
• Lamp weight: 880g
• Total weight (lamp, cable and transformer on the cable): 1.946 kg
• UV-A LED intensity (at 38 cm): 6,000 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 17.8 cm diameter.
• Visible light: <11 lux
• White LED intensity (at 38 cm): 4,306 lux
• 2.4 metre mains power cord.
• Type of plug and power supply required: EU or UK plugs - 230V
• Compliance: ASTM E3022, ISO3059

Supplied as a kit in a case including its mains charger, power cord and UV-A protective glasses.
