UV-365MAXHC/20/F UVISION MAX 6M CORD

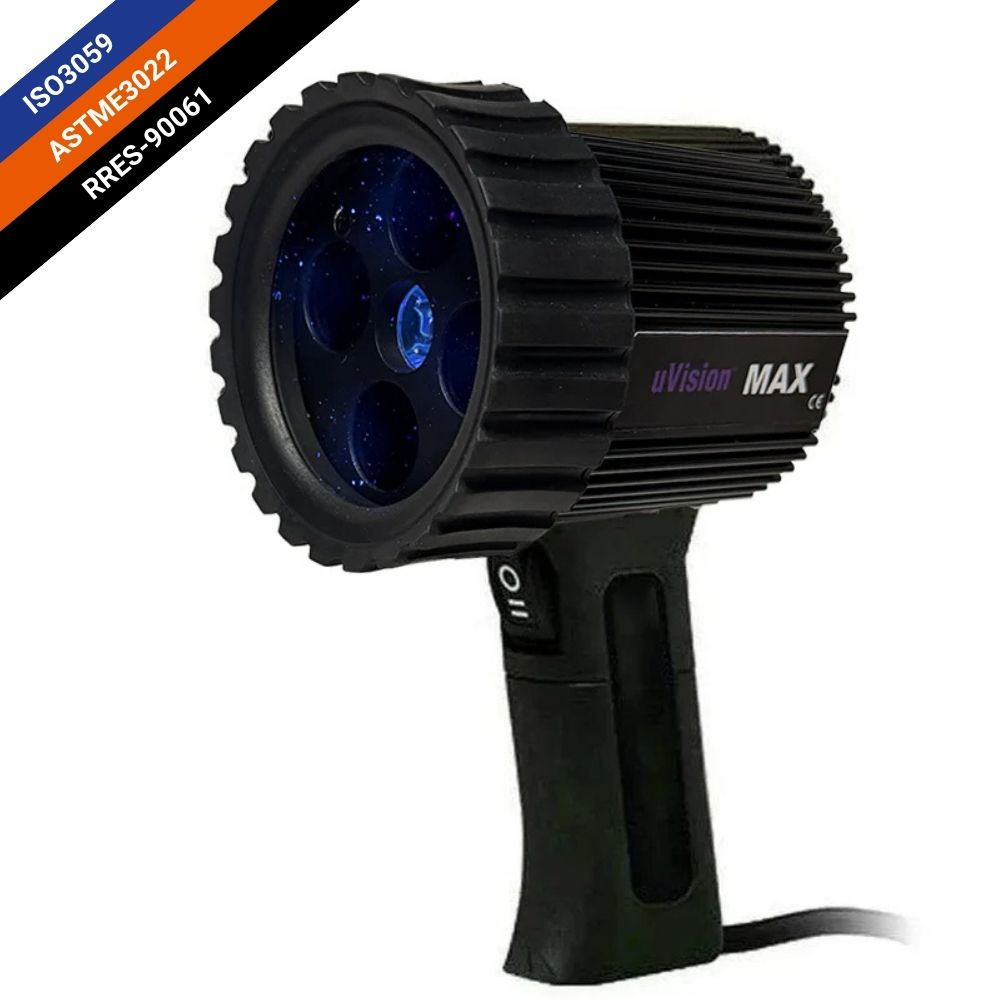

The uVision™ MAX HC (model UV-365MAXHC) is a wide-angle handheld UV-A inspection lamp used for Non-Destructive Testing (NDT).

Part of the uVision™ MAX series, this lamp features an innovative 4-lens configuration projecting an ultra-wide coverage area, ideal for inspecting large surfaces and complex geometries uniformly.

Engineered with a fanless thermal dissipation system (advanced heat sink), it maintains consistent performance and holds an IP65 rating, making it dust-tight and water-resistant for demanding environments.

In addition to its 4 powerful UV-A LEDs, an integrated white LED conveniently illuminates the work area with adjustable intensity. Featuring a pistol-grip format for optimal balance and comfort, this base model stands out from the rest of the range with its continuous AC mains operation via a power cord (battery-free), ensuring uninterrupted use in workshops or inspection booths.

Specifications:

• Dimensions (LWH): 9 cm head diameter, 19 cm height, 9 cm width.

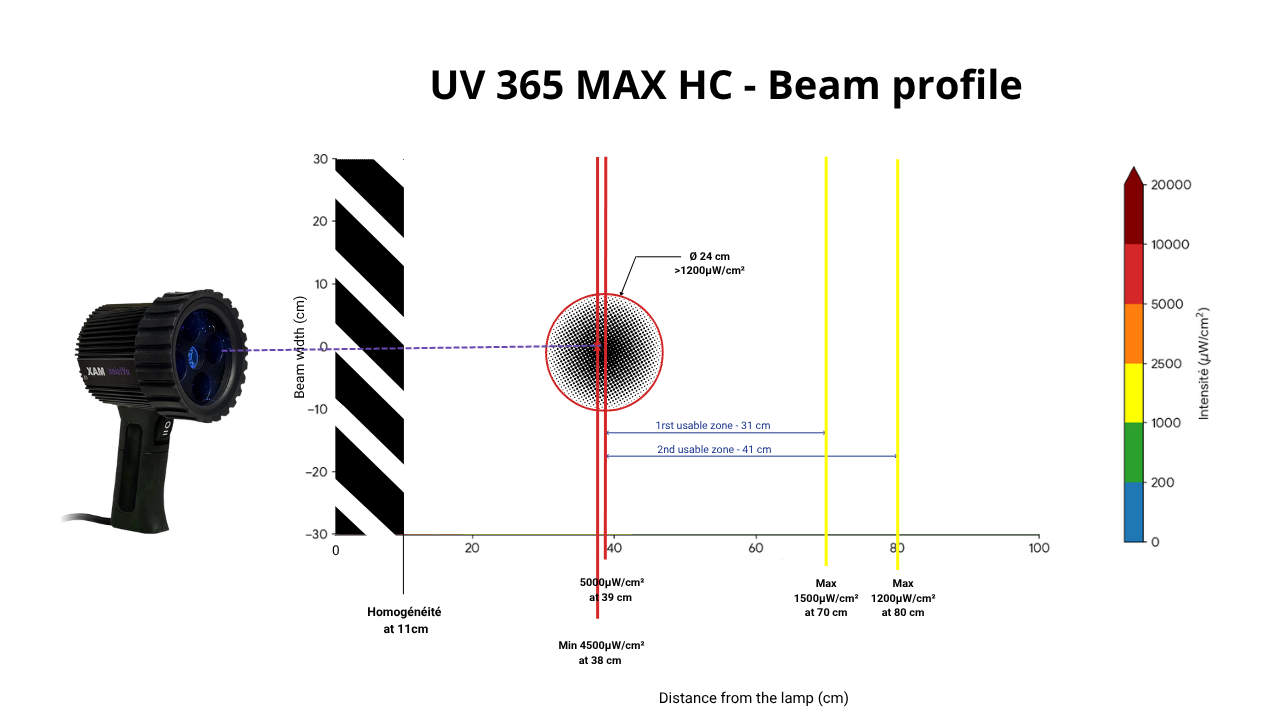

• Lamp weight: 0.90 kg. UV-A LED intensity (at 38 cm / 15 in): 4,500 µW/cm². UV-A coverage area (at 38 cm / 15 in at minimum 1,200 µW/cm²): 24 cm diameter.
• White LED intensity: 4,306 lux.
• Compliance: ASTM E3022, ISO 3059, ROLLS ROYCE RRES 90061, AIRBUS AITM6, and Pratt & Whitney.

Power supply and plug type: AC mains powered with a standard 6-meter (20 ft) cord fitted with the appropriate plug for the destination country.

Delivered as a kit in a carrying case including: the pistol-grip lamp, the in-line AC power supply unit with its cables, and UV-A protective glasses.
