UV-365MAXHC/F UVISION MAX 2,4M CORD
€1,989.40
Ex-works shipping lead-time (days)
7
Stock : In stock

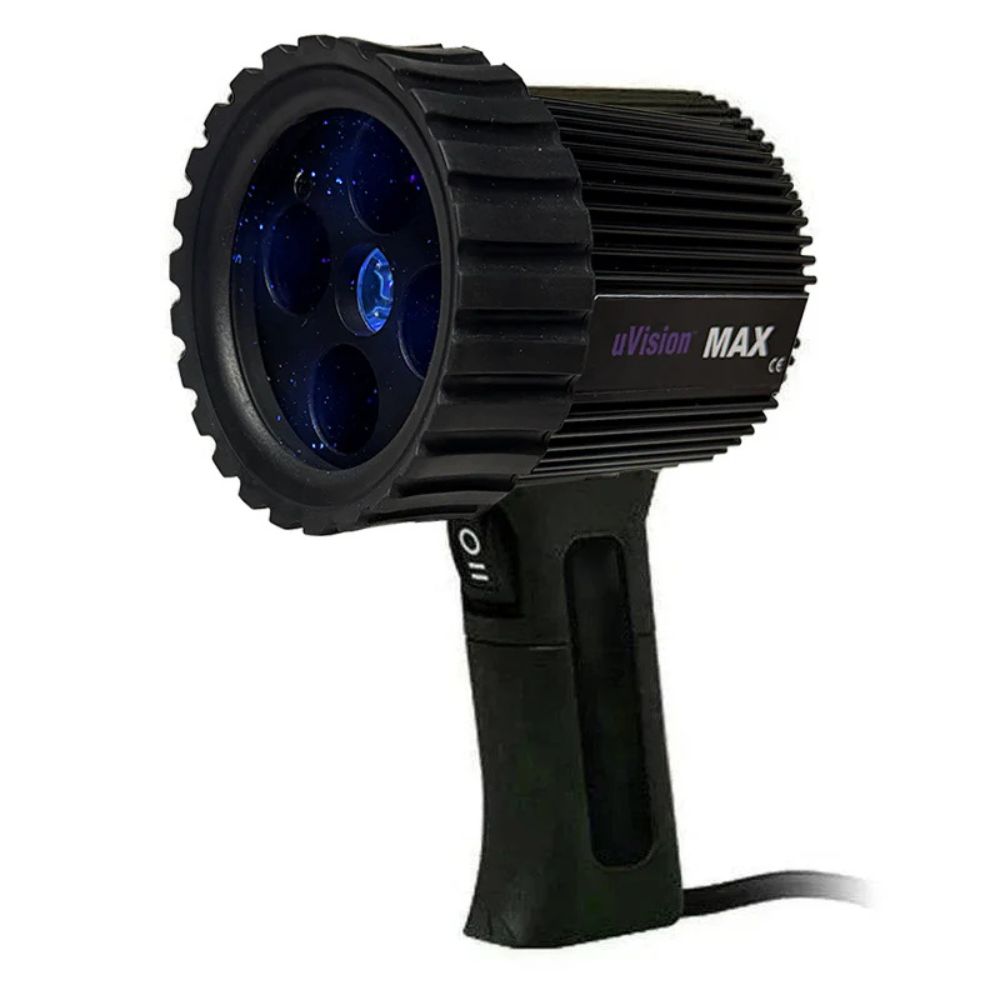

The uVision™ MAX HC (model UV-365MAXHC) is a portable, wide-angle UV-A inspection lamp used for Non-Destructive Testing (NDT).
As part of the uVision™ MAX series, this lamp features an innovative 4-lens configuration that projects an ultra-wide coverage area, ideal for uniformly inspecting large surfaces and complex geometries.
Designed with a fanless thermal management system (advanced heat sink), it maintains consistent performance and boasts an IP65 certification, making it dust-tight and resistant to water jets for demanding environments.
In addition to its four powerful UV-A LEDs, an integrated white LED conveniently illuminates the work area with adjustable intensity. Featuring a pistol-grip format for optimal balance and comfort, this base model stands out from the rest of the range by operating continuously on mains power via a power cable (battery-free), guaranteeing uninterrupted use in the workshop or inspection booth.
Specifications
- Dimensions (WHD): 9 cm head diameter, 19 cm height, 9 cm width.
- Lamp Weight: 0.90 kg.
- UV-A LED Intensity (at 38 cm): 4,500 µW/cm².
- UV-A Coverage Area (at 38 cm with a minimum of 1,200 µW/cm²): 24 cm diameter.
- White LED Intensity: 4,306 lux.
- Compliances: ASTM E3022, ISO 3059, ROLLS ROYCE RRES 90061, AIRBUS AITM6, and Pratt & Whitney.
- Power Supply and Plug Type: Mains powered with a standard 2.4-metre (8-foot) cord fitted with the appropriate plug for the country of destination (an optional 6-metre cord is also available).
Supplied as a kit in a carrying case comprising: the pistol-grip lamp, the in-line mains power supply with cables, and UV-A absorbing safety glasses.
| Technical Data Sheet | uVision_MAX_tds_english.pdf (905.94kB) |
|---|
| Approvals |
|
|---|
| SKU (GTIN) | P366579201062 |
|---|---|
| Ex-works shipping lead-time (days) | 7 |
| Weight (kg) | 5.00 |
| Brand |  |
| ERP Code | 900119-952 |
