UV-365MAXMHC/F UVISION MAX CORD/BATTERY

The uVision™ MAX MHC (model UV-365MAXMHC) is a wide-beam, handheld UV-A inspection lamp used for Non-Destructive Testing (NDT).

As part of the uVision™ MAX series, this lamp features an innovative 4-lens configuration that projects an ultra-wide coverage area, allowing for the inspection of large surfaces and complex geometries in minimal time.

Designed with an advanced, fanless thermal management system, the lamp remains cool to the touch and instantly maintains its performance thanks to built-in microprocessors. In addition to its powerful four UV-A LED array, a built-in, adjustable white LED provides practical illumination of the work area without the need for additional lighting.

Featuring a "pistol-grip" format for a balanced and comfortable hold, its robust design is IP65 rated (dust-tight and resistant to water jets) to withstand the most demanding working environments. This specific "M" model operates on a Lithium-Ion battery built directly into the handle.

Technical Specifications:

• Dimensions: 9 cm (3.5") head diameter, 19 cm (7.5") height, 9 cm (3.5") width
• Weight: 0.90 kg (1.9 lb)
• UV-A LED Intensity (at 38 cm): 4,500 µW/cm²

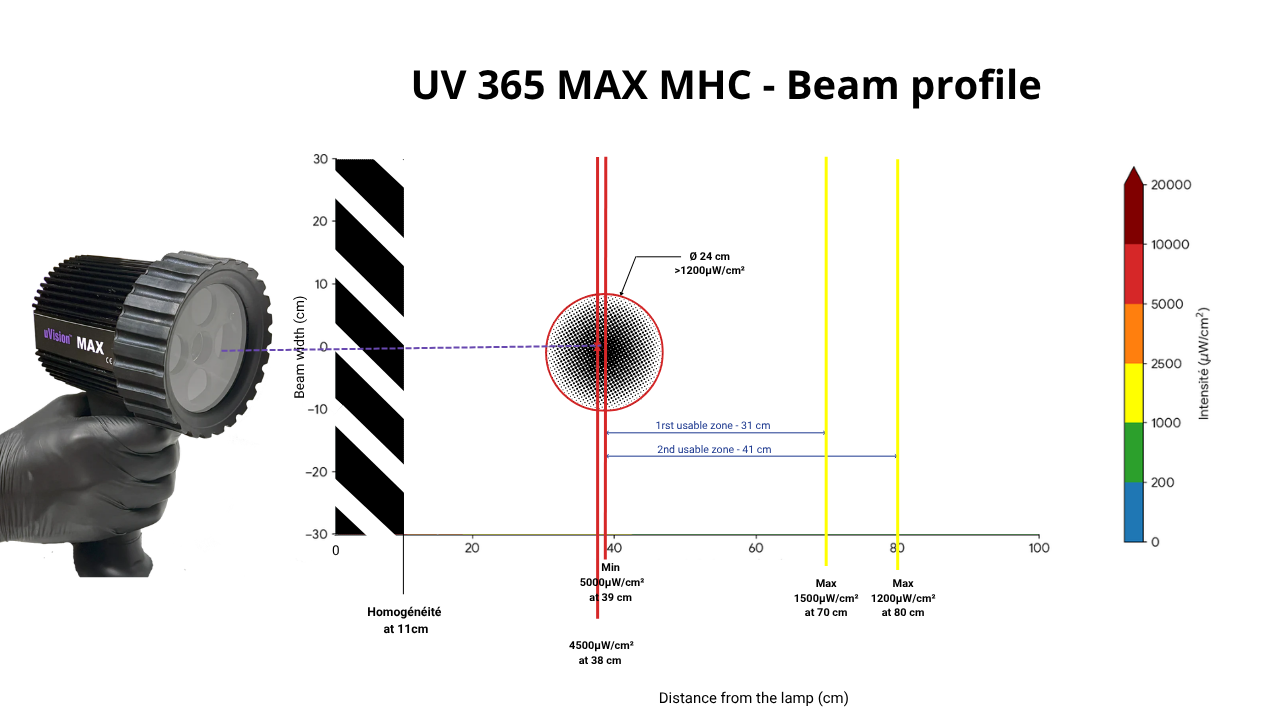

• UV-A Coverage Area (at 38 cm for a minimum of 1,200 μW/cm²): 24 cm (9.5") diameter
• Visible Light: < 11 lux (< 1 foot-candle)
• White LED Intensity: 4,306 lux (400 foot-candles), adjustable
• Run Time: 7 hours of continuous operation
• Charging Time: 4 hours
• Compliances: ASTM E3022, EN ISO 3059, ROLLS ROYCE RRES 90061, AIRBUS AITM6-1001, and Pratt & Whitney
• Power Supply and Plug Type: 14.8 V Lithium-Ion battery (rechargeable) and mains adaptor (100-120VAC/12VDC, with 230V options and EU, UK adaptors, etc., as well as an option with a 6-metre cable)

Supplied as a kit in a padded carrying case comprising: the pistol-grip lamp (with built-in Lithium-Ion battery), an in-line mains power supply with cables, and UV-absorbing safety glasses.
