UV-365MAXZHC/F UVISION MAX BATTERY
€2,288.30
Ex-works shipping lead-time (days)
7
Stock : In stock

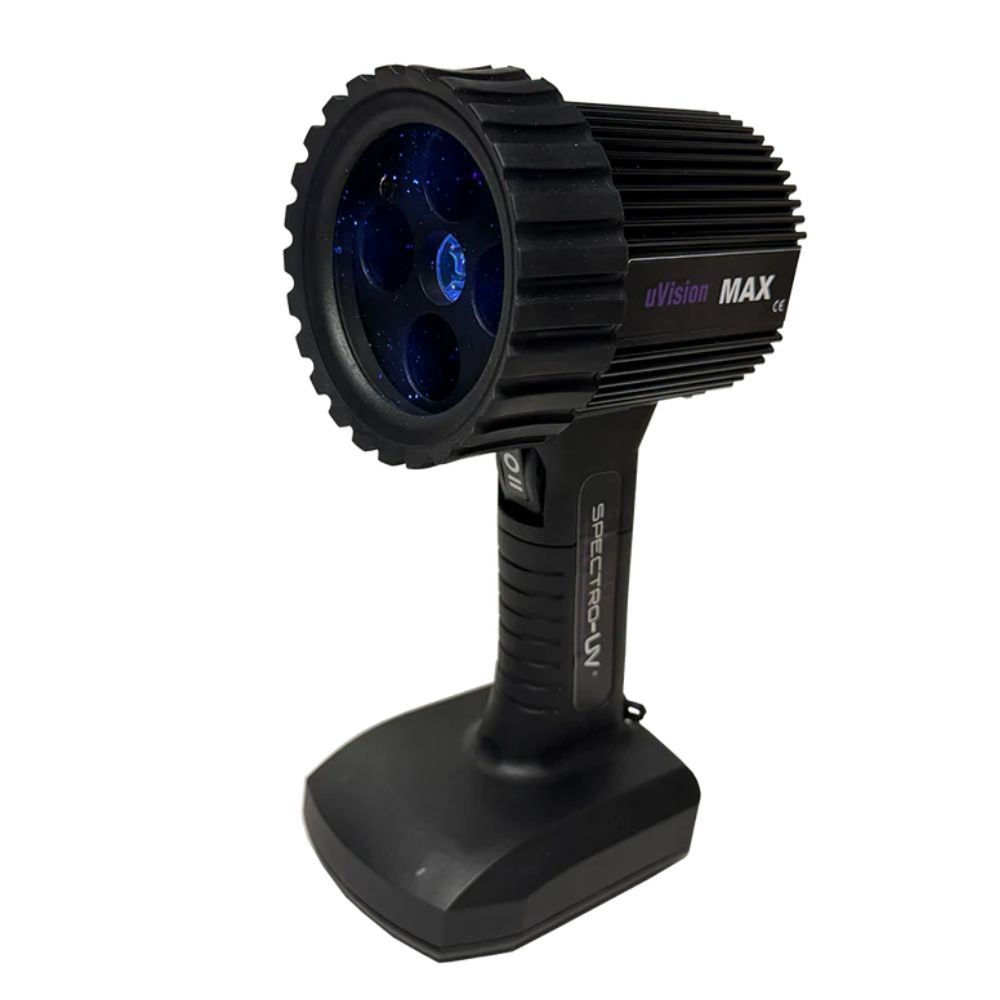

The uVision™ MAX ZHC (model UV-365MAXZHC) is a portable, wide-angle UV-A inspection lamp used for Non-Destructive Testing (NDT).
As part of the uVision™ MAX series, this lamp features an innovative 4-lens configuration that projects an ultra-wide coverage area, ideal for uniformly inspecting large surfaces and complex geometries.
Designed with a fanless thermal management system (advanced heat sink), it maintains consistent performance and boasts an IP65 certification, making it dust-tight and resistant to water jets for demanding environments.
In addition to its four powerful UV-A LEDs, an integrated white LED conveniently illuminates the work area with an adjustable intensity.
Featuring a pistol-grip format for optimal balance and comfort, this "Z" model stands out from the rest of the range by operating on an external rechargeable battery pack (separate from the handle), offering exceptional flexibility in the field.
Specifications :
- Dimensions (WHD): 9 cm head diameter, 19 cm height, 9 cm width.
- Lamp Weight: 0.90 kg.
- UV-A LED Intensity (at 38 cm): 4,500 µW/cm².

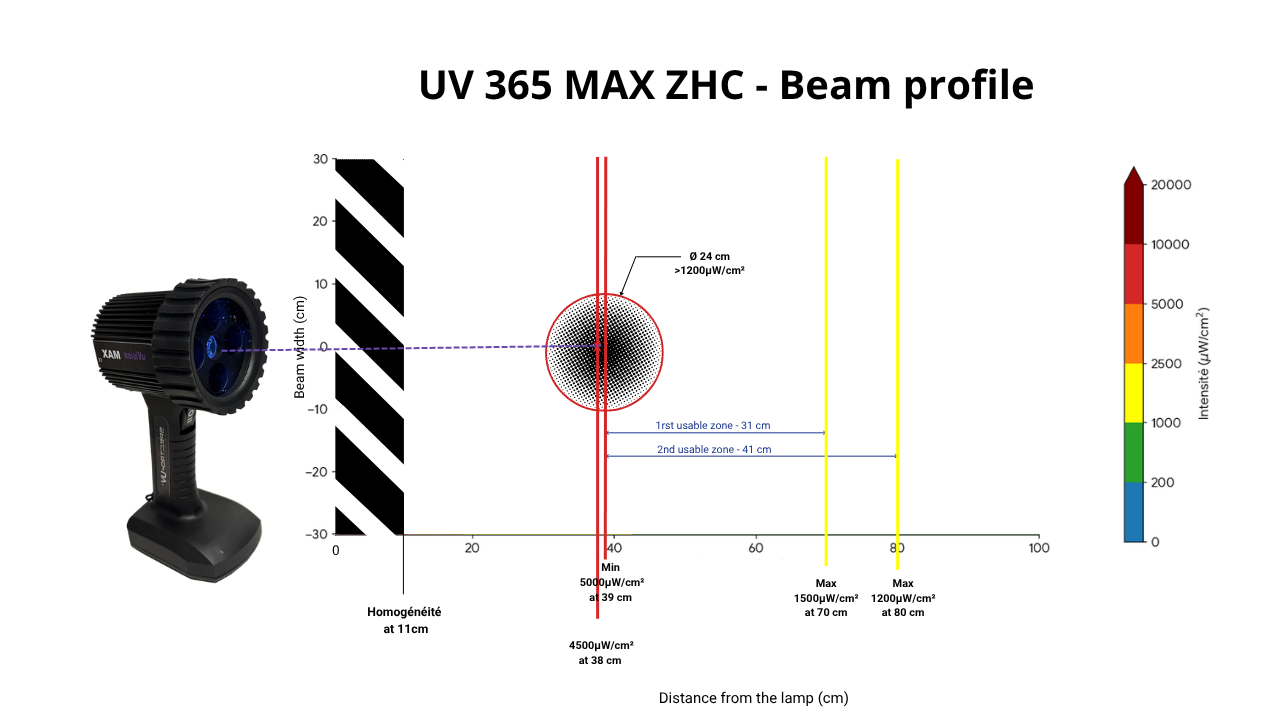

- UV-A Coverage Area (at 38 cm with a minimum of 1,200 µW/cm²): 24 cm diameter.
- White LED Intensity: 4,306 lux.
- Battery Life: 7 hours of continuous operation.
- Charge Time: 4 hours.
- Compliances: ASTM E3022, ISO 3059, ROLLS ROYCE RRES 90061, AIRBUS AITM6, and Pratt & Whitney.
- Power Supply and Plug Type: External Lithium-Ion battery pack (14.8V) and charger.
Supplied as a kit in a carrying case comprising: the pistol-grip lamp, the external Lithium-Ion battery pack, the mains charger with cables, and UV-A absorbing safety glasses.
| Technical Data Sheet | uVision_MAX_tds_english.pdf (905.94kB) |
|---|
| Approvals |
|
|---|
| SKU (GTIN) | P366579201061 |
|---|---|
| Ex-works shipping lead-time (days) | 7 |
| Weight (kg) | 5.00 |
| Brand |  |
| ERP Code | 900119-949 |
