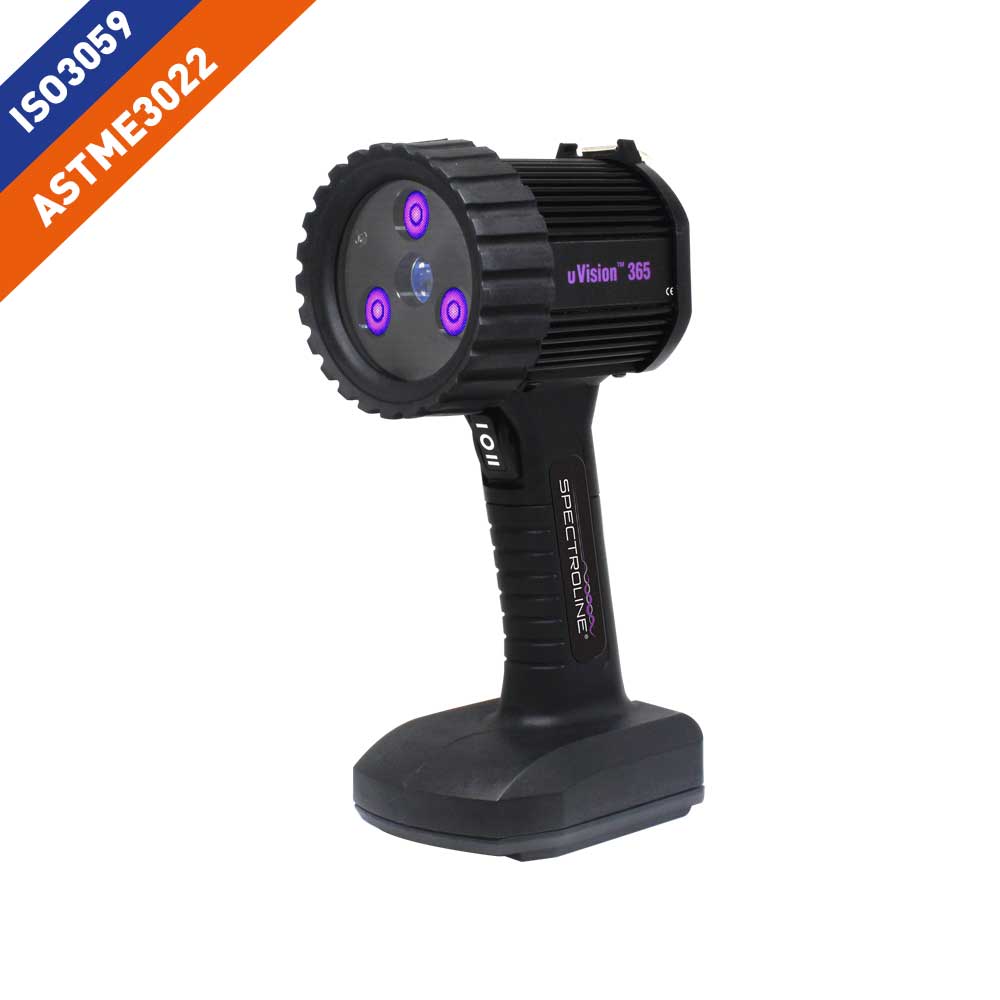

UV-365ZHC/F UVISION DELUXE BUILT-IN BATTERY

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the DELUXE HC (High Compliant) Series, the UV-365ZHC/F is a high-intensity mobile solution (Z-Model) designed for the most demanding inspections. It is designed for very high-quality assessments. This Z-Model (built-in battery) operates on a 14.8V rechargeable lithium-ion battery housed in the handle, offering great freedom of movement. This model offers a high-intensity UV-A beam.

Using an heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). In addition to three powerful UV-A LEDs (365 nm), an adjustable white LED is integrated into the lamp for illuminating work areas and scanning surface defects. The front panel is equipped with integral UV-A filters to reduce visible wavelengths and maximise contrast. Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Specifications:

• Dimensions (W*H): 9.5 cm head diameter, 24.13 cm height.
• Total weight of lamp: 1.202 kg
• UV-A LED intensity (at 38 cm): 8,000 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 21 cm diameter.
• Visible light: <11 lux
• White LED intensity (at 38 cm): 4,306 lux
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230V
• Battery:
  • 14.8 V lithium-ion battery (rechargeable)
  • 7 hours of battery life
  • 4 hours charging time
• Compliance: ASTM E3022-18



Supplied as a kit in a case including the lamp with its integrated lithium battery, mains charger and power cord, and UV-A protective goggles.
