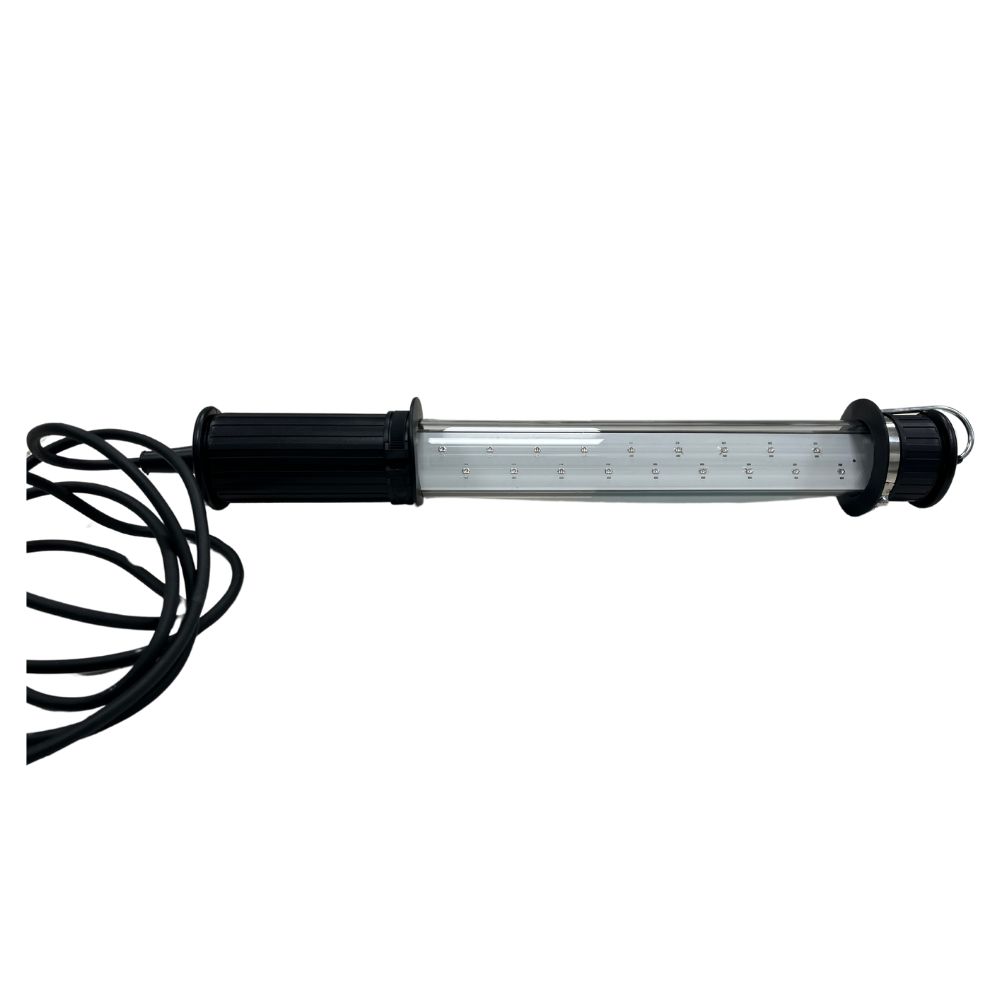

UV-A SPLASHPROOF LOW VOLTAGE 24 V LED HAND LAMP

UV-A Splashproof Low Voltage 24V LED Hand Lamp Overview

The UV-A Splashproof Low Voltage 24V LED Hand Lamp is a high-performance ultraviolet inspection lamp designed for industrial applications such as surface treatment and non-destructive testing (NDT). Built with 18 UVA LEDs, this robust lamp operates at a nominal wavelength of less than 370 nm, ensuring precision in UV exposure. Its IP54-rated enclosure provides protection against dust and water splashes, making it suitable for demanding environments. The device is powered by a 24V AC supply with a low power consumption of 7.75W, ensuring energy efficiency without compromising performance.

UV-A Splashproof Low Voltage 24V LED Hand Lamp Key Features

• Wavelength: < 370 nm with a spectral width (FWHM) < 10 nm.
• UV irradiance on the beam axis: Approximately 300 µW/cm² at 50 cm from the lamp.
• Illumination area at 300 µW/cm²: An ellipse of 50 x 60 cm at a distance of 30 cm from the lamp.
• Light source: 18 UV-A LEDs.
• Protection rating: IP54 (protection against dust and splashes).
• Power supply: Operates on 24V AC with a low power consumption of 7.75W.
• Compliance: CE and RoHS certified for safety and environmental standards.
• Wiring: Flexible 5-metre power cable (lamp supplied without a plug).
