UVISION 365 MODELE Z BATTERIE ISO 3059

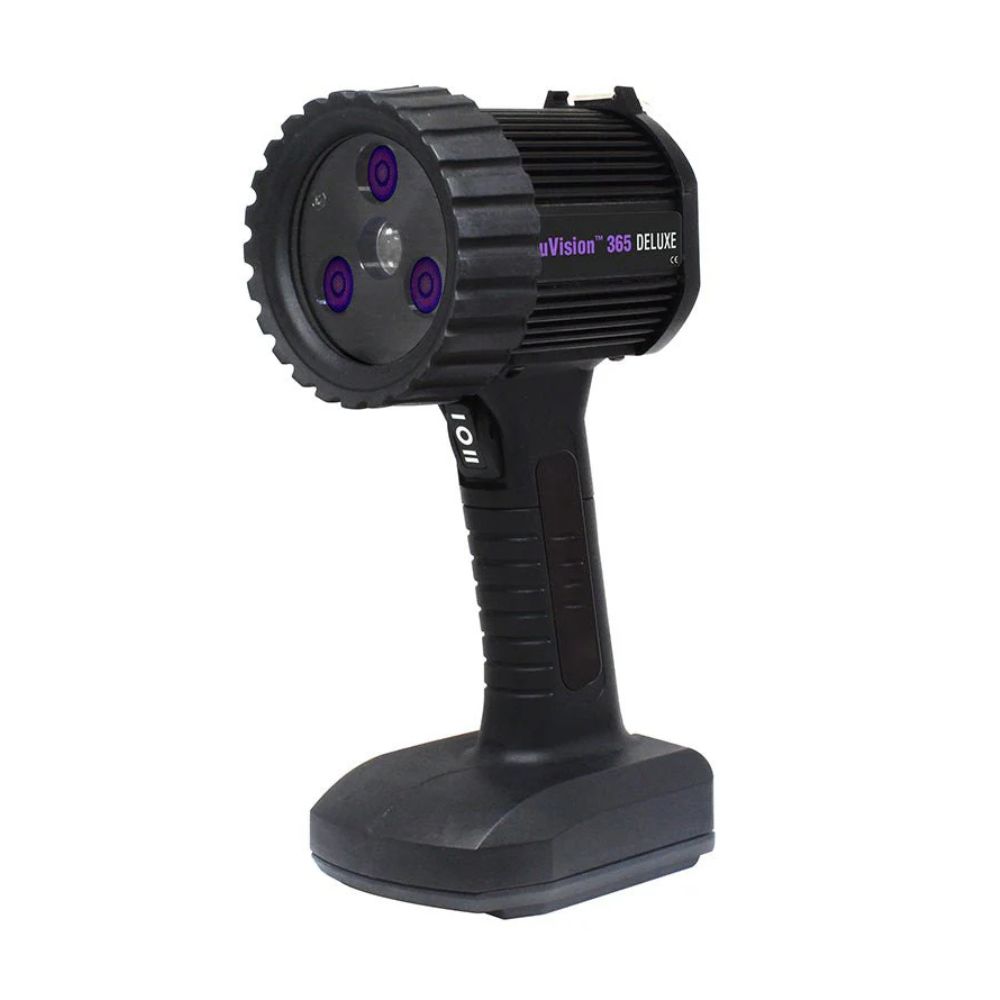

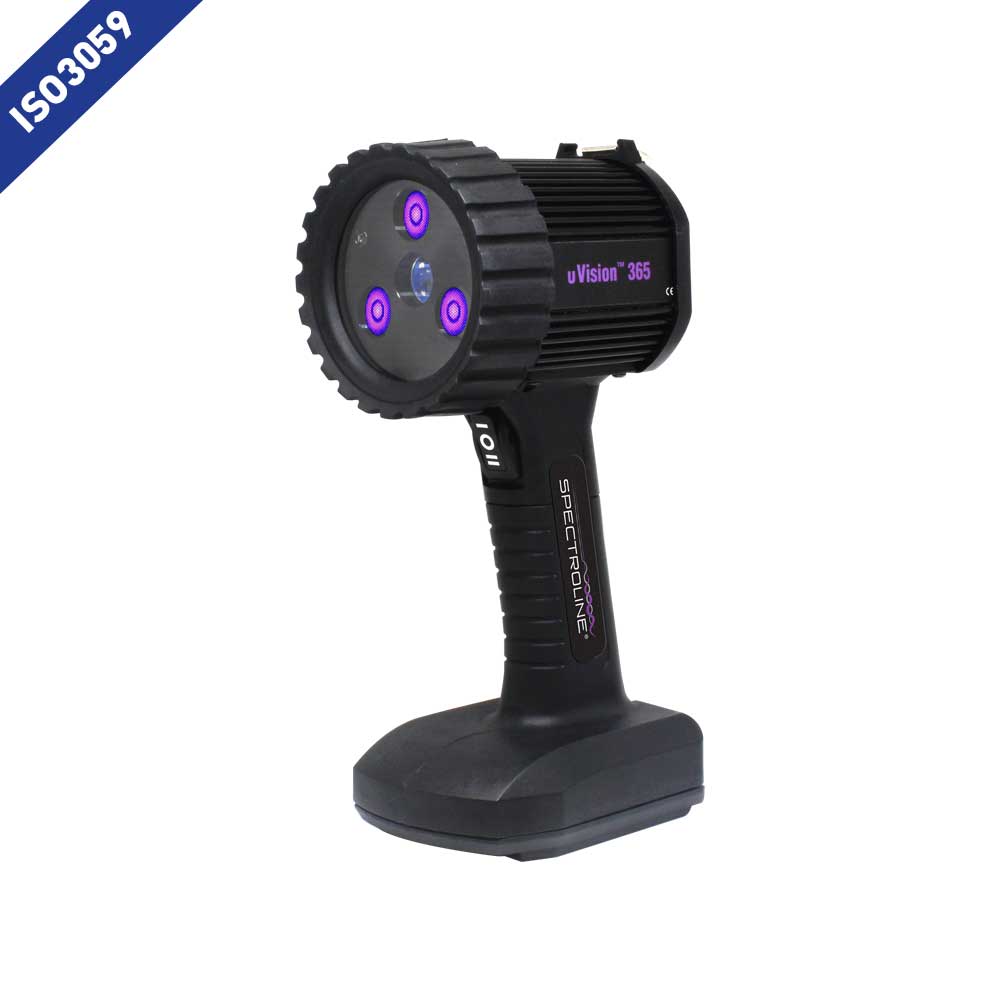

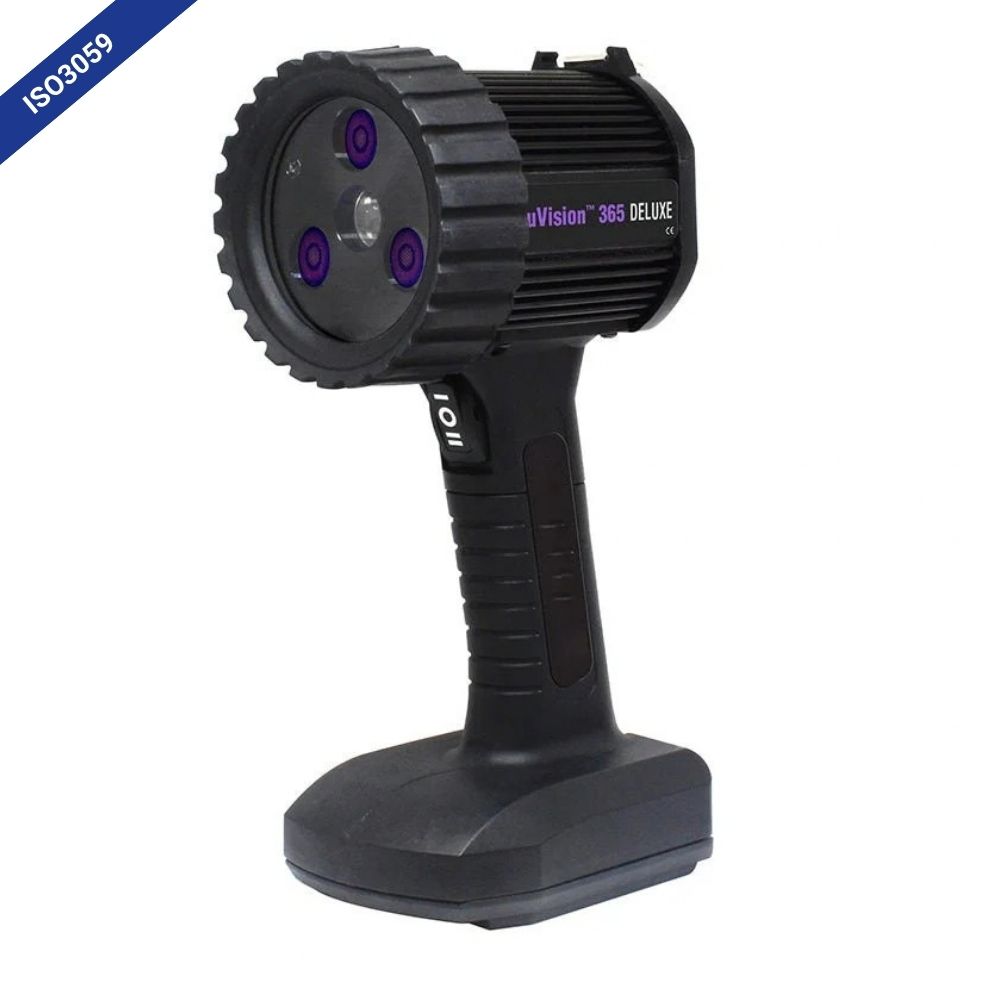

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the Standard Series (EH), the UV-365ZEH/F is a Mobile (Z-Model)  It is designed for very high-quality evaluations and is particularly robust, reliable and wireless. This Z-Model (built-in battery) operates on a 14.8V rechargeable lithium-ion battery housed in the handle, offering maximum freedom of movement. This model offers high intensity for strong fluorescence excitation.

Using an heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). In addition to three powerful UV-A LEDs (365 nm), a white LED is integrated into the lamp for illuminating work areas and scanning surface defects. Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Specifications:

• Dimensions (W*H): 9.5 cm head diameter, 24.13 cm height.
• Total weight of lamp: 1.202 kg
• UV-A LED intensity (at 38 cm): 9,000 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 20.3 cm diameter.
• Visible light: <22 lux.
• White LED intensity (at 38 cm): 4,306 lux.
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230V
• Battery:
  • 14.8 V lithium-ion battery (rechargeable)
  • 8-hour battery life
  • 4-hour charging time

Supplied as a kit in a case containing the lamp with its built-in battery, mains charger and power cord, and UV-A protective glasses.
