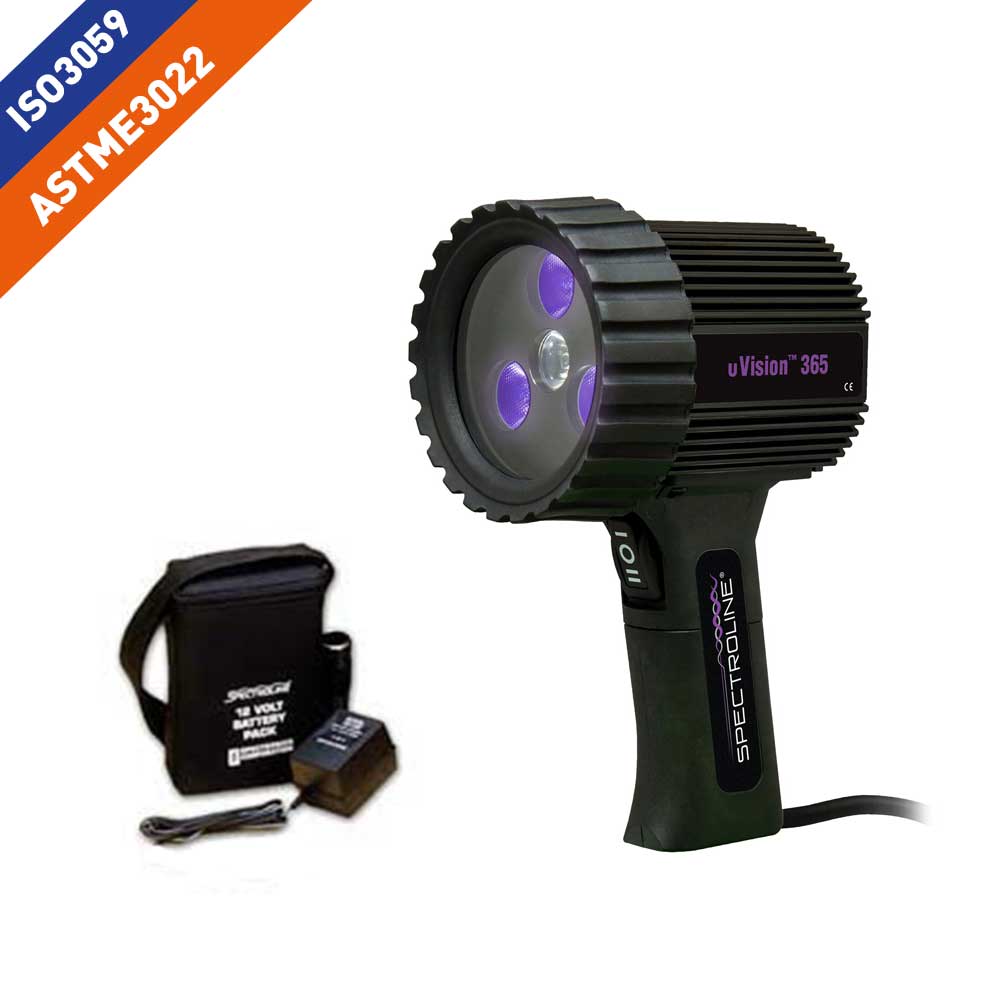

UVISION LAMP 365, BATTERY -CORD ASTME3022

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the DELUXE HC (High Compliant) Series, the UV-365MHC/F is a mobile (M-Model) solution that is fully compliant with standards and ideal for field inspection applications, including aerospace. It is designed for very high-quality evaluations. It comes with a remote 12V rechargeable NiMH battery pack. This model offers a high-intensity UV-A beam for striking fluorescent response.

In addition to three powerful UV-A LEDs (365 nm), an adjustable white LED is integrated into the lamp for illuminating work areas and scanning surface defects. Using an heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). Lightweight and robust, it is IP65 rated (dustproof and water resistant). The front panel is equipped with integral UV-A filters to reduce visible wavelengths and maximise contrast.

Specifications:

• Dimensions (W*H): 9.5 cm head diameter, 19.10 cm height.
• Total lamp weight: 1.946 kg

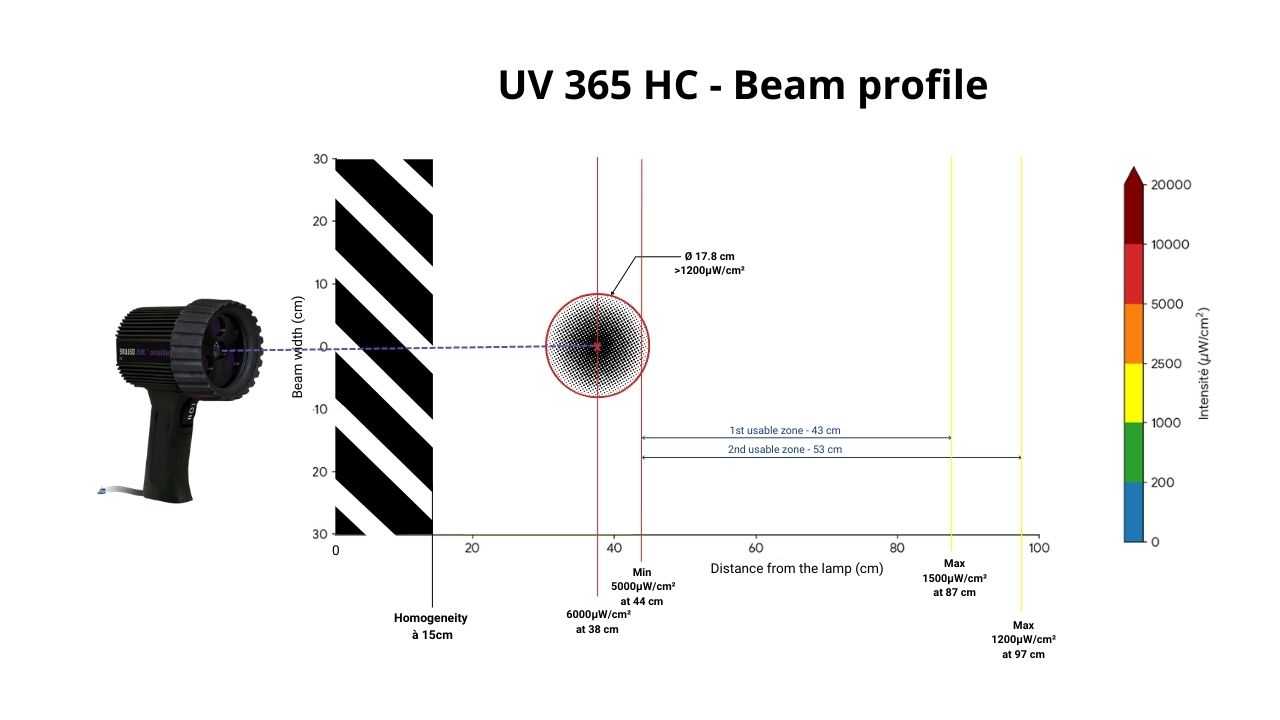

• UV-A LED intensity (at 38 cm): 6,000 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 17.8 cm diameter.
• Visible light: <11 lux
• White LED intensity (at 38 cm): 4,306 lux
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230V
• Battery:
  • NiMH (rechargeable) 12 V
  • 3.5 hour battery life
  • 2 hour charging time
• Compliance: ASTM E3022-18

Supplied as a kit in a case including the lamp with integrated mains power supply and power cord, its 12 V NiMH rechargeable remote battery and UV-A protective glasses.
