UVISION LAMP 365, STANDARD, 6M-CORD

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the Standard Series (ES), the UV-365ES/F is designed for fluorescent inspection in any indoor/outdoor environment. These compact and cost-effective inspection lamps allow for very high-quality assessments. Utilizing an heat sink concept, the uVision cools mechanically without the need for a fan.

In addition to three powerful UV-A LEDs (365 nm), a white LED is integrated into the lamp for workspace lighting and surface defect scanning. The compact head design allows access to areas unreachable by larger UV-A inspection lamps. Lightweight and robust, it is IP65 rated (dust-tight and water-resistant).

Specifications:

• Dimensions (W*H): 8.38 cm head diameter, 19 cm height.
• Total weight of lamp: 1.065 kg.
• Weight of head: 0.73 kg.
• Weight of battery: 0.335 kg.

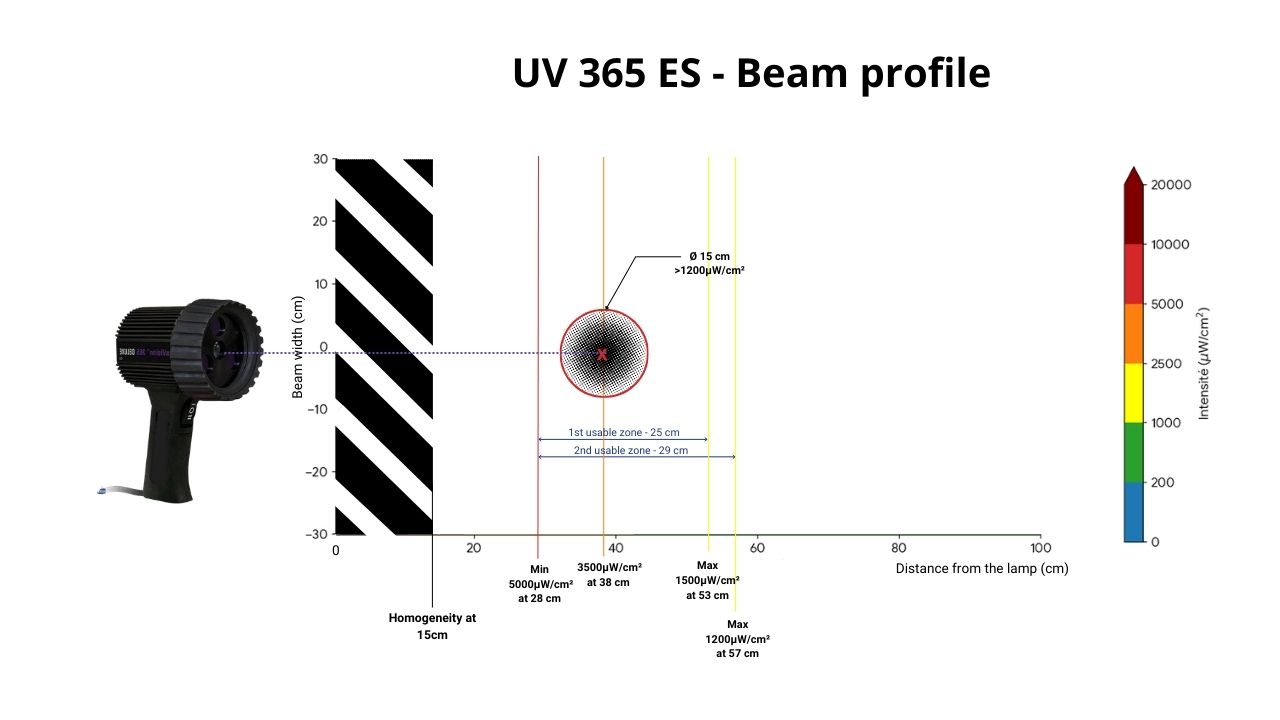

• UV-A LED intensity (at 38 cm): < 5,000 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 μW/cm²): 15 cm diameter.
• Visible light: < 11 lux
• White LED intensity (at 38 cm): 4,306 lux
• 6 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230V

Supplied as a kit in a case including the lamp with mains power supply and UV-protective glasses.
