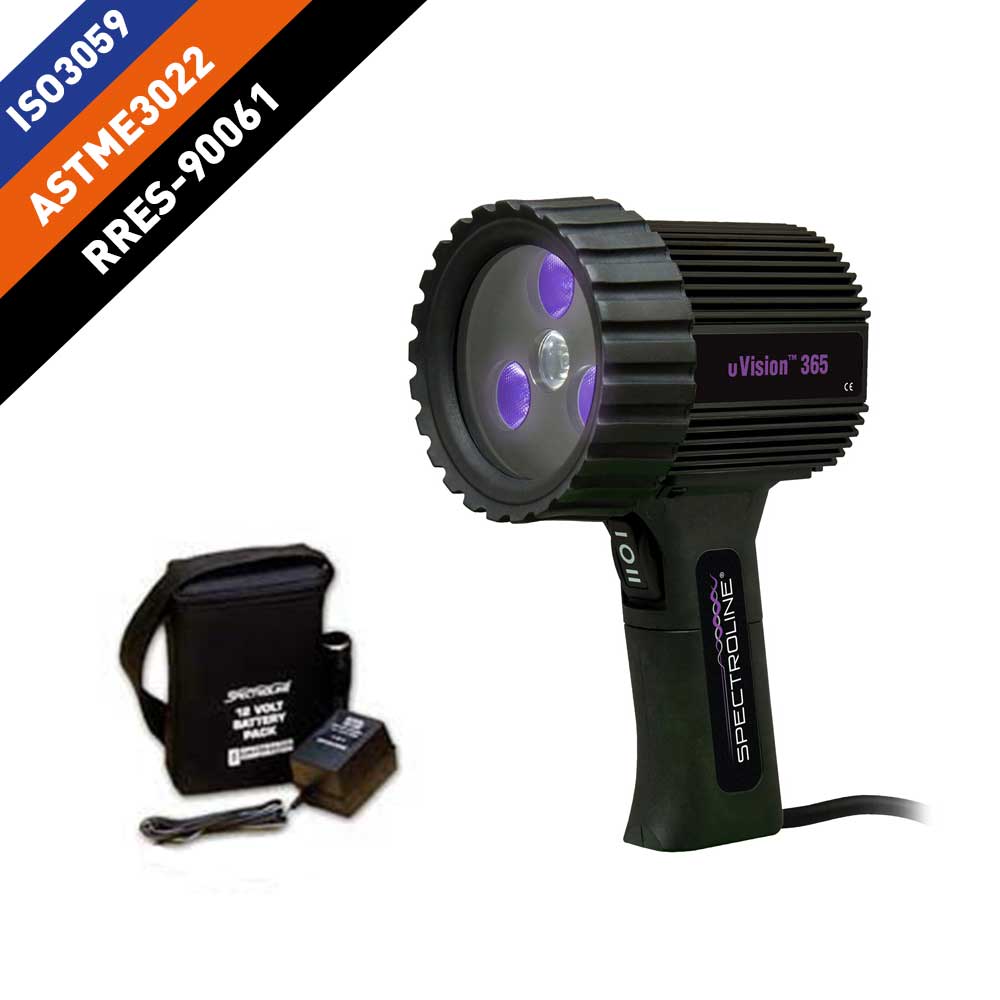

UVISION LAMP 365, STANDARD, BATTERY 2.4M-CORD RR

The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection.

Part of the DELUXE SBLC (Standard Compliant) Series, the UV-365MSBLC/F is a wireless Mobile (M-Model) solution designed for the most regulated inspections, including aerospace. It is designed for very high quality assessments. It comes with a remote 12V rechargeable NiMH battery pack. It incorporates Thermal Cut-Off Circuitry that prevents the lamp from going out of specification when the internal temperature exceeds limits.

Using an heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). In addition to three powerful UV-A LEDs (365 nm), an adjustable white LED is integrated into the lamp for illuminating work areas and scanning surface defects. The front panel is equipped with integral UV-A filters to reduce visible wavelengths and maximise contrast. Lightweight and robust, it is IP65 rated (dustproof and water resistant).

Specifications:

• Dimensions (W*H): 9.5 cm head diameter, 19.10 cm height.
• Total weight of lamp: 1.946 kg
• UV-A LED intensity (at 38 cm): 4,500 µW/cm².
• UV-A coverage area (at 38 cm at a minimum of 1,200 µW/cm²): 15.2 cm diameter.
• Visible light: <11 lux
• White LED intensity (at 38 cm): 4,306 lux
• 2.4 metre mains power cord.
• Plug type and power supply required: EU or UK plugs - 230V
• Remote battery pack :
  • NiMH (rechargeable) 12 V
  • 3.5 hour battery life
  • 2 hours' charging time
• Compliance: EN ISO 3059, ASTM E3022-18, RRES 90061, AIRBUS AITM6-1001, PRATT & WHITNEY

Supplied as a kit in a case including the lamp with integrated mains power supply and power cord, its 12 V NiMH rechargeable remote battery pack and UV-A protective glasses.
